Izze Infrared Tire Temperature Sensors

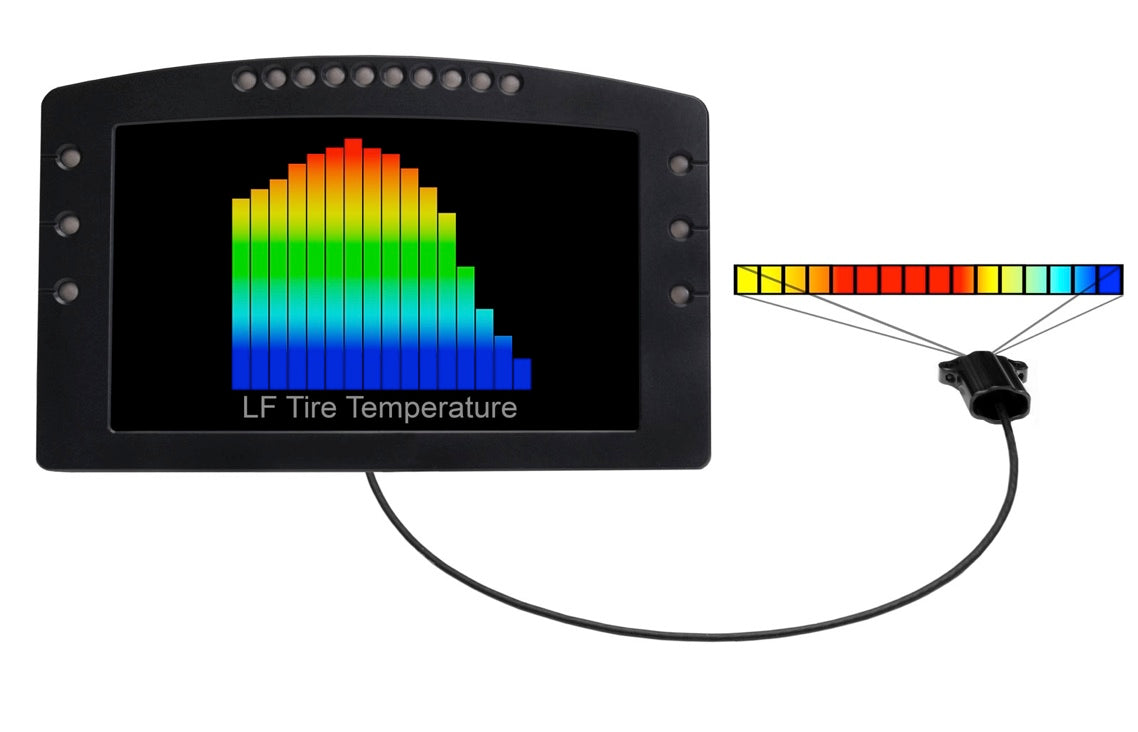

A tire temperature sensor specifically designed to measure the highly transient surface temperature of a tire with spatial fidelity, providing invaluable information for chassis tuning, tire exploitation, compound selection, and driver development.

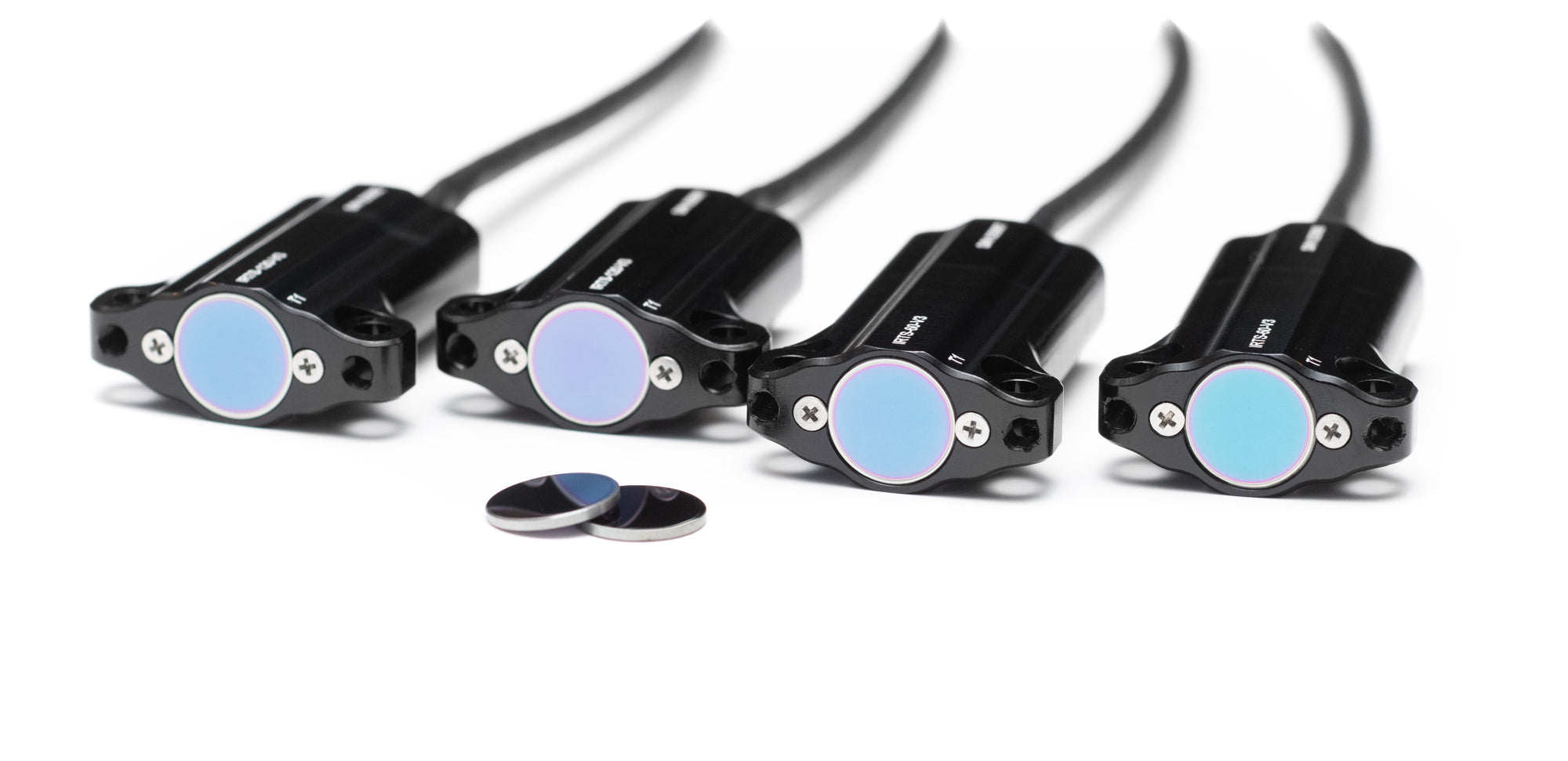

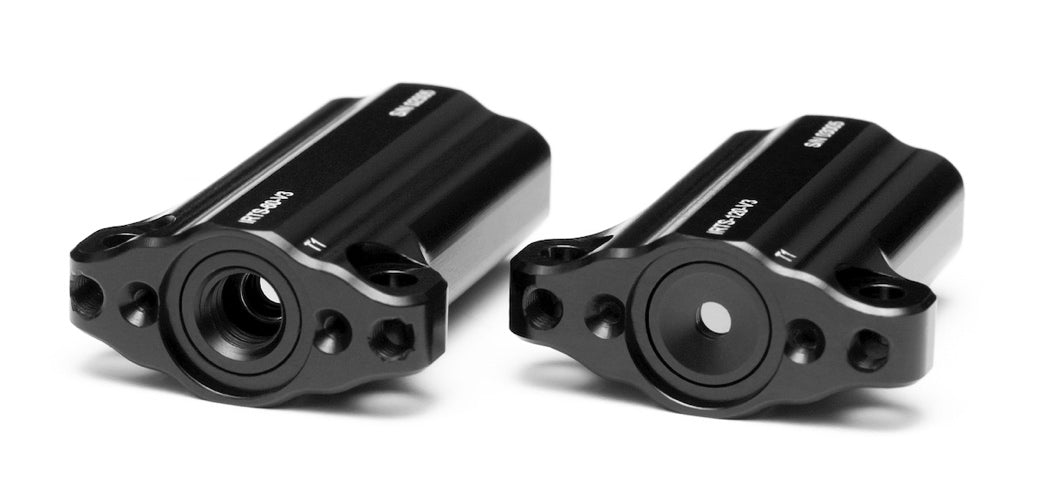

The sensor is capable of measuring temperature at 16, 8, or 4 laterally-spaced points, at a sampling frequency of up to 100Hz, object temperature between -20 to 300˚C, using CAN 2.0A protocol, and enclosed in a compact IP66 rated aluminum enclosure. The sensor is available with two field-of-views: ultra-wide (120˚) or wide (60˚).
