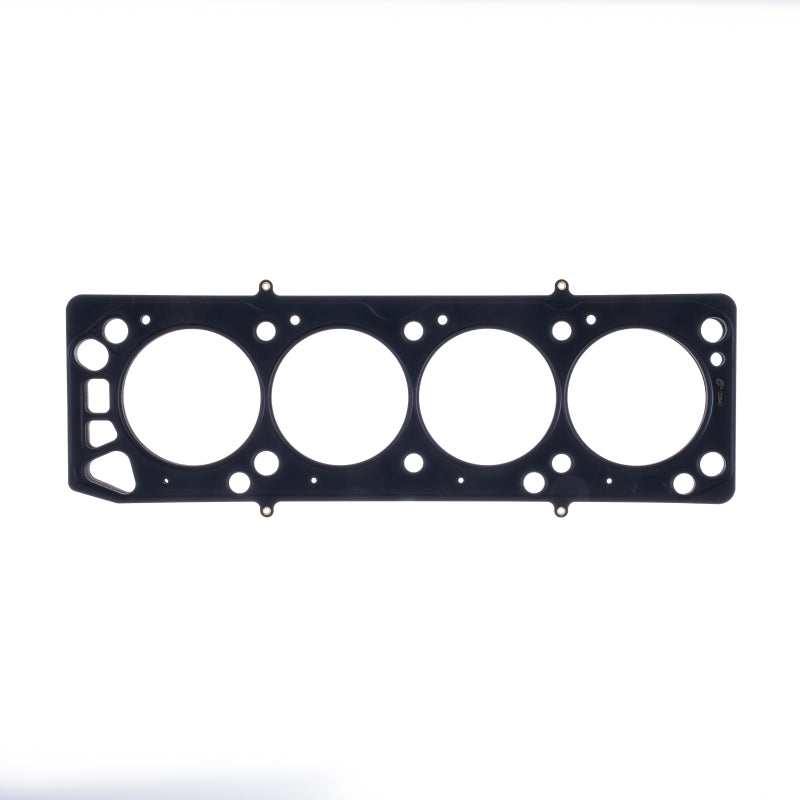

Cometic Ford 2.3L 4CYL 3.83in 97mm Bore .040 inch MLS Head Gasket

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.040". Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

This Part Fits:

Year	Make	Model	Submodel
1986-1987	Ford	Aerostar	Base
1986-1987	Ford	Aerostar	XL
1986-1987	Ford	Aerostar	XLT
1977-1982	Ford	Courier	Base
1979-1982	Ford	Courier	XLT
1978-1982	Ford	Fairmont	Base
1978-1983	Ford	Fairmont	Futura
1981,1983	Ford	Fairmont	S
1981-1982	Ford	Granada	GL
1981-1982	Ford	Granada	GLX
1981-1982	Ford	Granada	L
1983-1986	Ford	LTD	Base
1983-1986	Ford	LTD	Brougham
1979-1981	Ford	Mustang	Base
1979-1981	Ford	Mustang	Ghia
1982-1983	Ford	Mustang	GL
1982-1983	Ford	Mustang	GLX
1984	Ford	Mustang	GT
1984	Ford	Mustang	GT-350 20th Anniversary
1982-1984	Ford	Mustang	L
1984-1993	Ford	Mustang	LX
1984-1986	Ford	Mustang	SVO
1983	Ford	Mustang	Turbo GT
1974	Ford	Mustang II	2+2
1974-1978	Ford	Mustang II	Base
1974-1978	Ford	Mustang II	Ghia
1974	Ford	Mustang II	Mach 1
1974-1980	Ford	Pinto	Base
1976-1980	Ford	Pinto	Pony
1976-1980	Ford	Pinto	Squire
1983,1985-1986	Ford	Ranger	Base
1987-1992	Ford	Ranger	Custom
1984,1986,1988-1992	Ford	Ranger	S
1990	Ford	Ranger	S Plus
1993-1997	Ford	Ranger	Splash
1991-1993,1997	Ford	Ranger	Sport
1986-1990,1993-1995	Ford	Ranger	STX
1983-1986,1993-1997	Ford	Ranger	XL
1995	Ford	Ranger	XL Sport
1983-1985	Ford	Ranger	XLS
1983-1997	Ford	Ranger	XLT
1983-1988	Ford	Thunderbird	Turbo
1994-1997	Mazda	B2300	SE
